GRT : 2433.05
NRT : 2420.62
DWT : 2927.00
LOA : 260.00
FEET DEPTH : 15.00
FEET BREADTH : 48.00
FEET DRAFT : 3.79
METERS TOTAL CLEAR MAIN DECK AREA : 220 FEET X 35 FEET
STEEL SIDINGS (HEIGHT) : 12.00 FEET
WING TANK CAPACITIES
PORT & STBD. NO. 1 : 70.19 CU.M. = 140.38 CU.M.
PORT & STBD. NO. 2 : 77.02 CU.M. = 156.04 CU.M.
PORT & STBD. NO. 3 : 77.02 CU.M. = 156.04 CU.M.
PORT & STBD. NO. 4 : 70.19 CU.M. = 140.38 CU.M.

BARGE IS EQUIPPED WITH TWO (2) 15-TON CRANE FIXED MOUNTED AND HAS OWN LIGHTING SUPPLY OF 5-KVA GENERATOR.

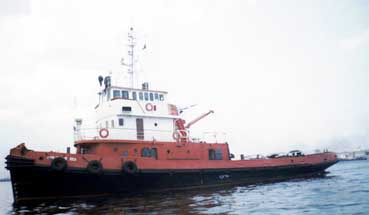

PRINCIPAL PARTICULARS
Built Re-engineered/Refitted 1962
Builder J. Kenwick & Co. Pty. Ltd.
Construction Steel
Classification Lloyds 1001A
Flag Philippines
Call Sign DUZE
DIMENSIONS
GRT 293.83
NRT 110.60
LOA 117.00 ft.
BREADTH 31.05 ft.
DEPTH 11.83 ft.
MACHINERY
Main Engine Mirrlees
Horsepower 1250
Generator 3 Units 55KVA 60HZ 220V 3 Phase
TOWING
Towing Hook (Quick Release) 25 Tons
SAFETY EQUIPMENT
Inflatable Liferaft 2 x 25 m3n
Lifevest 25
ACCOMODATION
Officers/Crews 14 Berths
Passenger 9 Berths
SPEED AND CONSUMPTION
Bollard Pull 20 tons
Free Running Speed 10 knots
PO Consumption (running) 3.5 tons/day
PO Consumption (standby) 0.175 tons/day
LO Consumption (running) 60 liters/day
CARGO CAPACITY
Fuel Capacity 75,000 liters
Lube Oil Capacity 2,800 liters
Freshwater Capacity 68 tons
Refrigeration 11cu.ft. (ref.)
Chiller 18 cu.ft.
Freezer 18 cu.ft.
NAVIGATION & COMMUNICATION
SSB 2 ICOM ICM700
VHF 1 ICOM ICM120
RADAR 1 FURUNO 1940
GPS FURUNO GP50
AUTO PILOT FURUNO FAP330
Depth Sounder FURUNO
Color Video Sound Model FCV 668
Weather Fax FURUNO 208A
NAVTEX RCVR FURUNO 500
SATCOM MINI M (Optional)

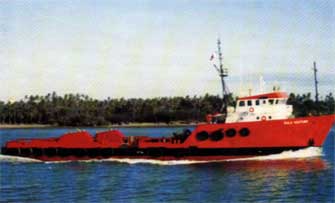

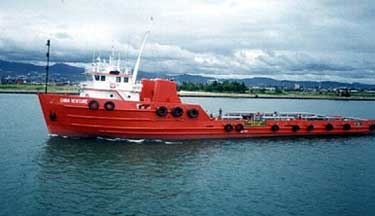

PRINCIPAL PARTICULARS
Classification ABS + A1 + AMS
Port of Registry Philippines
Flag Philippines
Year of Built 1976
Builder Halter Marine (Moss. Pt., USA)
Length O.A. 180 ft.
Length B.P. 172 ft.
Breadth Moulded 40 ft.
Depth Moulded 14 ft.
Max. Draft 12 ft
Gross Tonnage 190 ton
Light Displacement 700 LT
Fuel Capacity 238,000 liters GASOIL/436,000 liters
Freshwater 122 Tons Potable
601 Tons Rig water
Speed 11 knots
Range 60 days
Bollard Pull 35 Tons
Fuel Consumption 8.5 tons/day GASOIL
Accomodation Officer/Crew 12 Berths
Passenger 10 Berths
Cargo Deck Space 90' x 30'
Deck Cargo Capacity 450 long tons
Rigwater/Bridge and Ballast Pump Capacity 450 gpm at 200 ft. head
Fuel Transfer Pump Capacity 300 gpm at 150 ft. head
MACHINERY & EQUIPMENT
Main Engine 2 EMD 645 E6
1500 SHP at 900 RPM EACH)
Generators 2 125 KVA 440V RPM 60 HZ
Propellers two fixed pitch, two spares
Bowthrusters 304 HP at 2100 RPM
Towing Winch Double Drum Waterfall
120 Tons Hydraulic
Pneumatic controlled
Towing Gear 1-7/8" dia x 2000 ft. wire rope
Crane 2 Tons Hydraulic Crane
Anchoring Two 900 kg. Anchors
23 shots 1-1/8" Chain
Air Conditioning All accomodations
Refrigeration One (1) 240 cu. ft. walk-in freezer
One (1) 240 cu. ft. walk-in chiller
one gallery refrigerator
COMMUNICATIONS/NAVIGATION
Furuno Marine GPS Navigator GP70
Gyro Compass GM20/21 + Repeaters
Raytheon Fathometer/Simrad Graph Recorder
Radar x 2 Furuno Model 1940
SSB 2 units ICOM M700/Sailor 1000B
VHF 2 units ICOM and Sailor
Weather Fax Furuno FAX 208A
Auto Pilot Tokimec PR1000
Firefighting Equipment 3" Firemonitor head
110 tins/hr. at 500 ft.




PRINCIPAL PARTICULARS
Call sign DUH-2348
Flag Pilippines
Rebuilt 1998
Built USA 1975
Classification ABS + A1 Towing Vessel + AMS
Builder American Marine Corp.
DIMENSIONS
LOA 54.80 m (180.0 ft.)
Breadth 12.00 m (39.0 ft.)
Depth 4.34 m (14.0 ft.)
Max Draft 3.20 m (10.5 ft.)
GRT/NRT 224/152
CAPACITY
Fuel 366.00 mt
Drill Water 227.70 mt
Potable Water 144.70 mt
Dry Bulk 4 x 28.34 CBM (Cement Tank)
MACHINERY & EQUIPMENT
Main Engine EMD 16-567-BC (2x 1640 BHP)
Generators 2 x GM6V71 / 75 KW 93.7 KVA
1 x GM6V71 / 100 KW 125 KVA
Bow Thrusters Bird Johnson 210 HP
Towing Winch SMATCO DAW 66
Double Crum 100 tons line pull
Stern Roller 1M Dia x 3M Length
Bollard Pull 40 tons
COMMUNICATION & NAVIGATION
SSB 2 x Furuno FS-1502
VHS 2 x Motorola Triton II
GPS Furuno Marine Navigator GP 30
Radar 1 x Furuno 1930
1 x Furuno 1932 MK2




Services

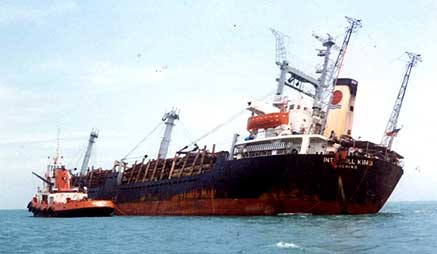

Salvage Operation

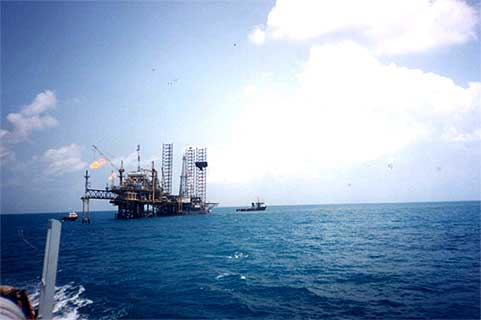

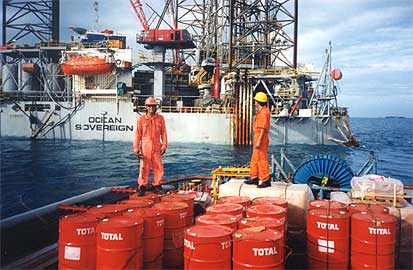

Supply and Support Services

Supply and Support Services



A rescue of passenger vessel in Indonesia

Supply and Support Services
